Norco Optic C2 SRAM

Norco Optic C2 SRAM
  • Color: Blue/Blue Black
  • Color: Red/Green
$4,599.00
$6,299.00
Color:
Red/Green
Size:
Medium
Please select options Unavailable

Details

The Optic is an aggressive short-travel sled that absolutely rips on descents but can get back up without a gondola. With 125mm of DH-inspired rear suspension, and 140mm travel up front, the Optic embodies Norco's Ride Aligned technology to provide clarity when your vision starts to blur from the speed, or your over-active tear ducts.

- Optic Carbon 29" 125mm FT/6061 Alloy RT
- Ride Aligned Trail geometry based around 140mm short offset forks
- Slack 65 Degree HA
- Short seat tubes with long travel droppers
- Ride Aligned Suspension setup
- Updated Chainstay and Seatstay
- Stiffer, 180mm post mount brake, added heel clearance
- Vittoria Mazza and Martello tires w/Graphene 2.0 Compound
- Stan's Tubeless Ready - Rims pre-taped, valves and sealant provided

RIDER BENEFITS:
- RIDE ALIGNED: The Optic uses Norco's Ride Aligned design system which matches each individual bike to the human who rides it, creating a customized platform that is both stable and balanced, allowing the rider to push harder.
- FINE TUNED REAR SUSPENSION: We created the Optic's suspension design around a very specific spring curve and damper settings, and RockShox and Fox stepped up to build everything we were looking for.
- HIGH SPEED BY DESIGN: By relaxing the Optic's head angle to 65 degrees for stability, we fine-tuned the handling with reduced-offset forks – providing even more high-speed precision and predictability for a more aggressive trail attack.
- EQUIPPED TO DESCEND: To bolster the Optic's descending prowess, each bike is equipped with 4-piston disc brakes, shorter seat tubes, long-stroke dropper posts and aggressive knobby tires.

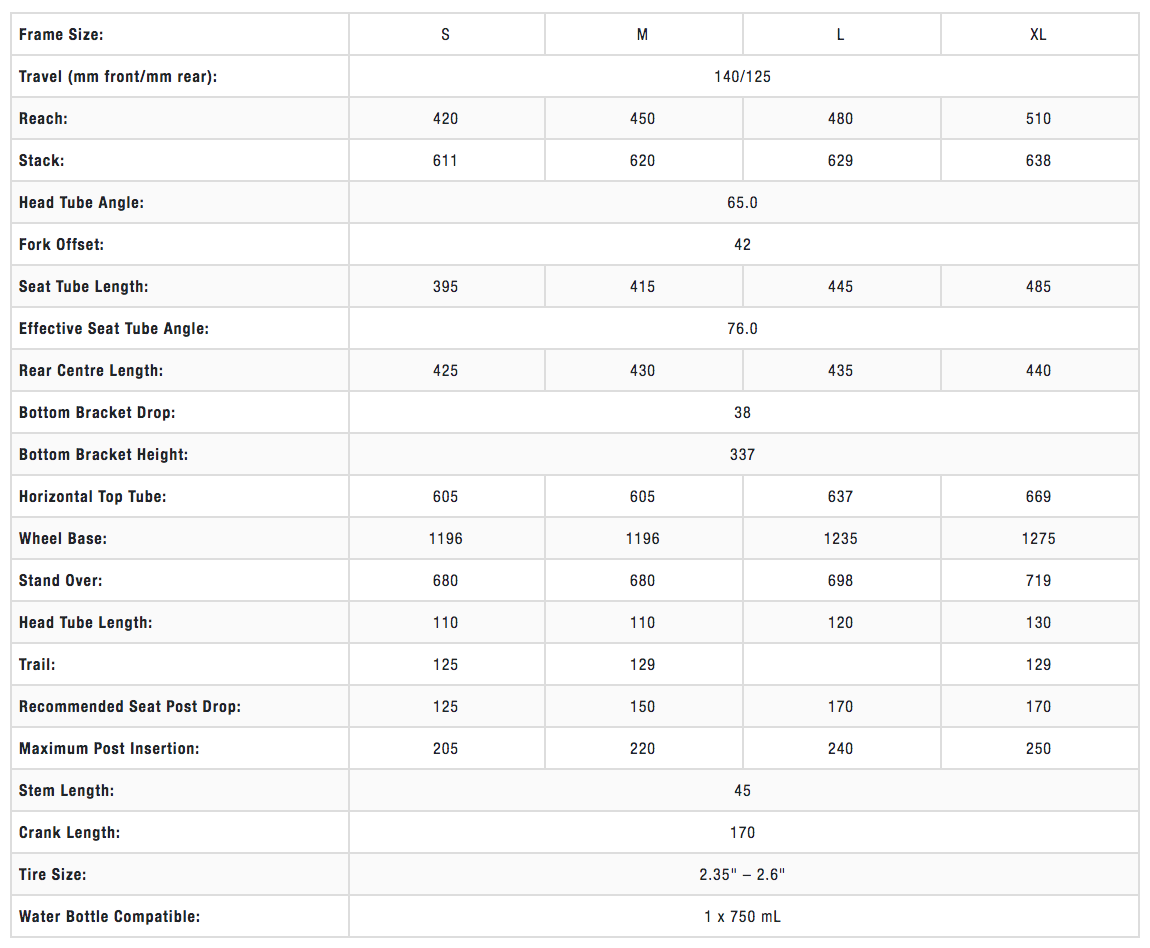

Specs

Frame Carbon Front Triangle/Aluminum Rear, 125mm Travel, Ride Aligned
Fork RockShox Pike Select + RC, DebonAir, 140mm Travel, 42mm Offset
Headset FSA Internal Sealed Bearing
Rear Shock RockShox Super Deluxe Ultimate DH Custom RC, 190 x 45mm
Rims/Wheels Stans Flow S1 29", 32H
Hubs Front: DT Swiss 350 15 x 110mm Boost, 6 Bolt
Rear: DT Swiss 350 12 x 148mm Boost, XD, 6 Bolt
Spokes Sapim Sprint DB Stainless
Tires Front: Vittoria Mazza 2.4" Trail G2.0
Rear: Vittoria Martello 2.35" Trail G2.0
Crankset SRAM GX Eagle DUB Lunar, 170mm
Chainrings 32T
Bottom Bracket SRAM DUB PF92
Chain SRAM GX Eagle
Rear Derailleur SRAM GX Eagle
Cassette/Rear Cogs SRAM XG1275 Eagle, 10-52T
Shifters SRAM GX Eagle 12spd
Handlebars TranzX Butted 6061 Alloy, 780mm, 20mm Rise
Tape/Grips DMR Deathgrip
Stem 6061 Alloy 45mm Length, 35mm Clamp
Brake Levers Shimano Deore BR-MT520
Brakes Front: Shimano Deore BR-MT520, 4 piston w/Shimano SM-RT66 203mm, Metallic rotor
Rear: Shimano Deore BR-MT520, 4 Piston w/Shimano SM-RT66 180mm, Metallic rotor
Pedals Sold Separately
Saddle Fizik Alpaca Terra, Wingflex
Seat Post X-Fusion Manic dropper, 31.6mm, 125mm (S), 150mm (M,L), 170mm (XL)

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Red/Green / Medium 058817484056 0640721905 210000006406
